| ASTM A475 Hot Dip Galvanized Strands, Clase A | ||||||||
| Nomenal | Constante | Diámetro nominal | Aprox. Peso | Mínimo Fuerza de ruptura | Peso de zinc | |||
| Alto | Extra alto | Revestimiento | ||||||
| Diámetro | de cables | Fortaleza | Fortaleza | |||||
| Pulgadas | in | lbs/ft. | kg/1000 ' | lbs | lbs | oz/sq.ft | g/sq.m | |

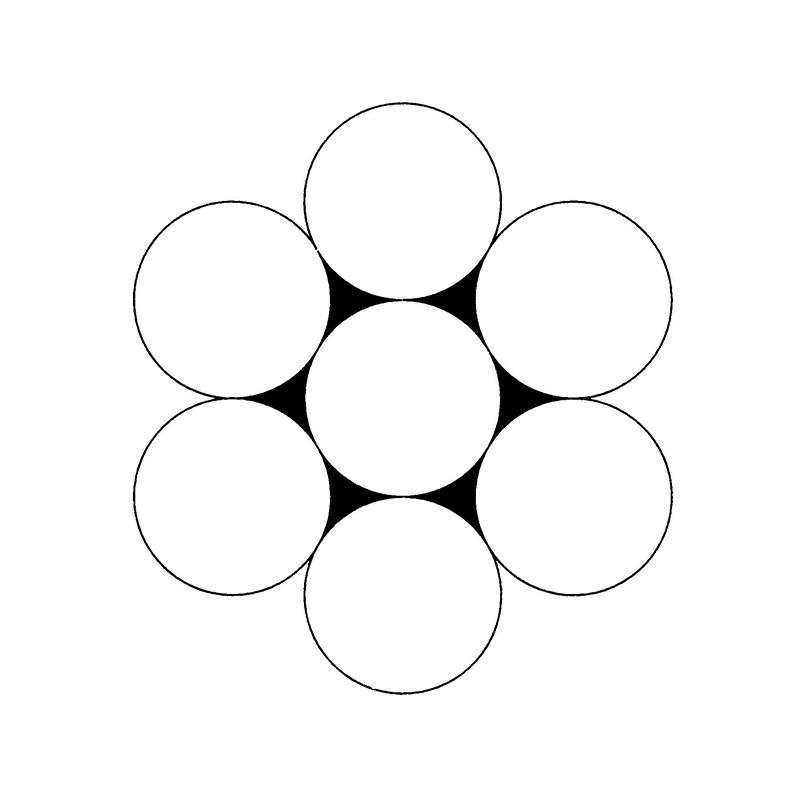

| 1/8 | 1x7 | 0.041 | 0.032 | 14.5 | 1.330 | 1.830 | 0.4 | 122 |
| 5/32 | 1x7 | 0.052 | 0.051 | 23 | 2,140 | 2,940 | 0.4 | 122 |
| 3/16 | 1x7 | 0.062 | 0.073 | 33 | 2.850 | 3.990 | 0.5 | 153 |
| 7/32 | 1x7 | 0.072 | 0.098 | 45 | 3.850 | 5.400 | 0.5 | 153 |
| 1/4 | 1x7 | 0.08 | 0.121 | 55 | 4.750 | 6,650 | 0.6 | 183 |
| 9/32 | 1x7 | 0.093 | 0.164 | 74 | 6.400 | 8,950 | 0.7 | 214 |
| 5/16 | 1x7 | 0.109 | 0.205 | 93 | 8,000 | 11,200 | 0.8 | 244 |
| 3/8 | 1x7 | 0.12 | 0.273 | 124 | 10,800 | 15,400 | 0.8 | 244 |
| 7/16 | 1x7 | 0.145 | 0.399 | 181 | 14,500 | 20,800 | 0.9 | 275 |
| 1/2 | 1x7 | 0.165 | 0.517 | 235 | 18,800 | 26,900 | 0.9 | 275 |
| 9/16 | 1x7 | 0.188 | 0.671 | 304 | 24,500 | 35,000 | 1 | 305 |

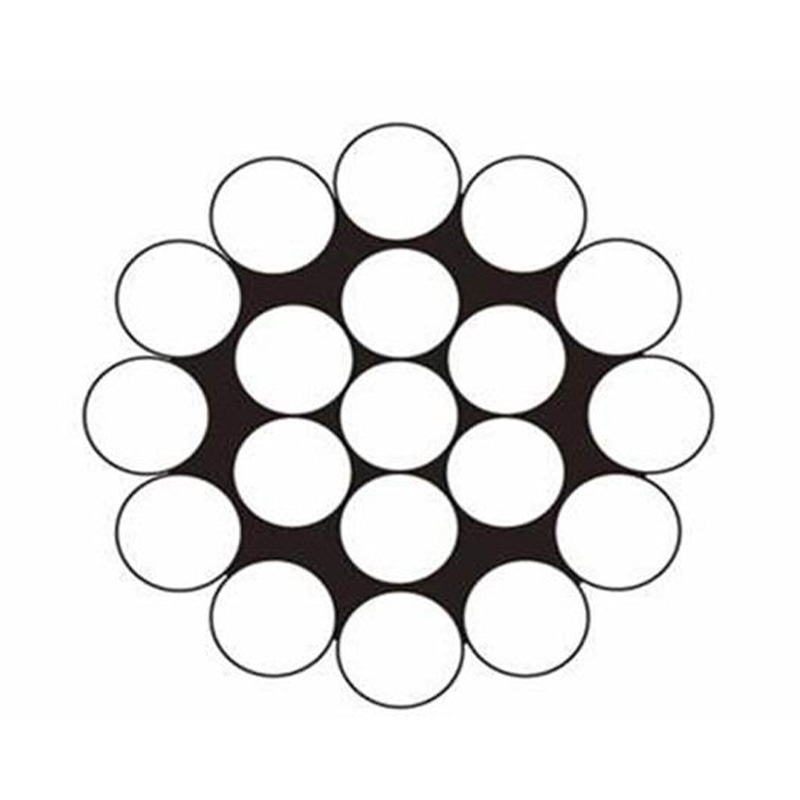

| 1/2 | 1x19 | 0.1 | 0.504 | 229 | 19,100 | 26,700 | 0.7 | 214 |
| 9/16 | 1x19 | 0.113 | 0.637 | 289 | 24,100 | 33,700 | 0.8 | 244 |
| 5/8 | 1x19 | 0.125 | 0.796 | 362 | 28,100 | 40,200 | 0.85 | 259 |
