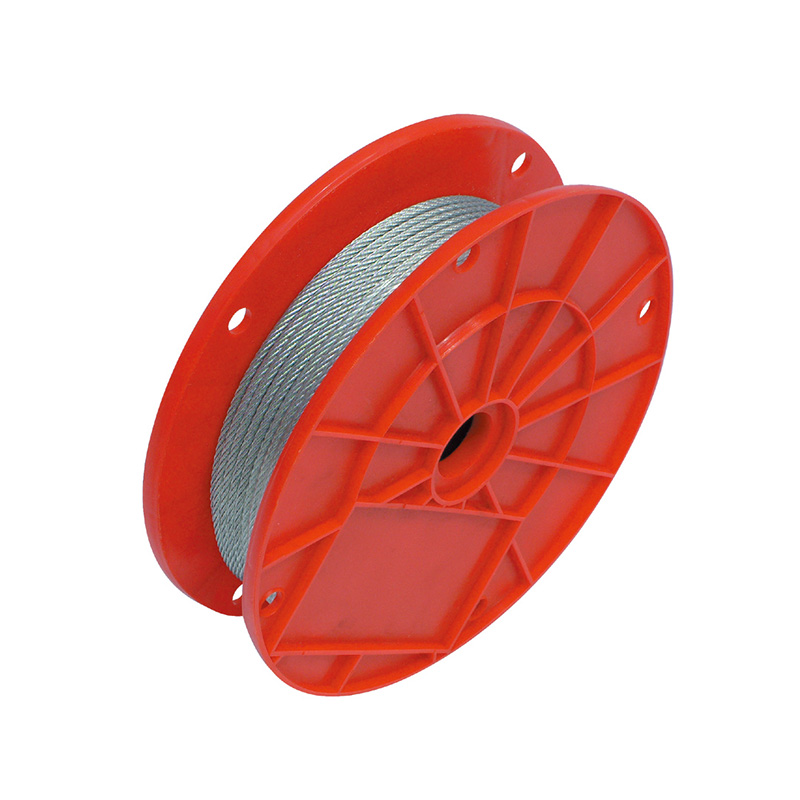

| Cables de aeronaves galvanizados (no para uso de aeronaves) | |||||
| Especificación: RR-W-410G | |||||
| Acero de arado mejorado | |||||
| Nominal | Tolerancia | Aproximadamente | Aprox. | Mínimo Fuerza de ruptura | |
| Diámetro | en diámetro. | Peso | Peso | Galvanizado | Inoxidable |
| pulgada | pulgada | kg/1000 ' | LB/1000 ' | lb | lb |

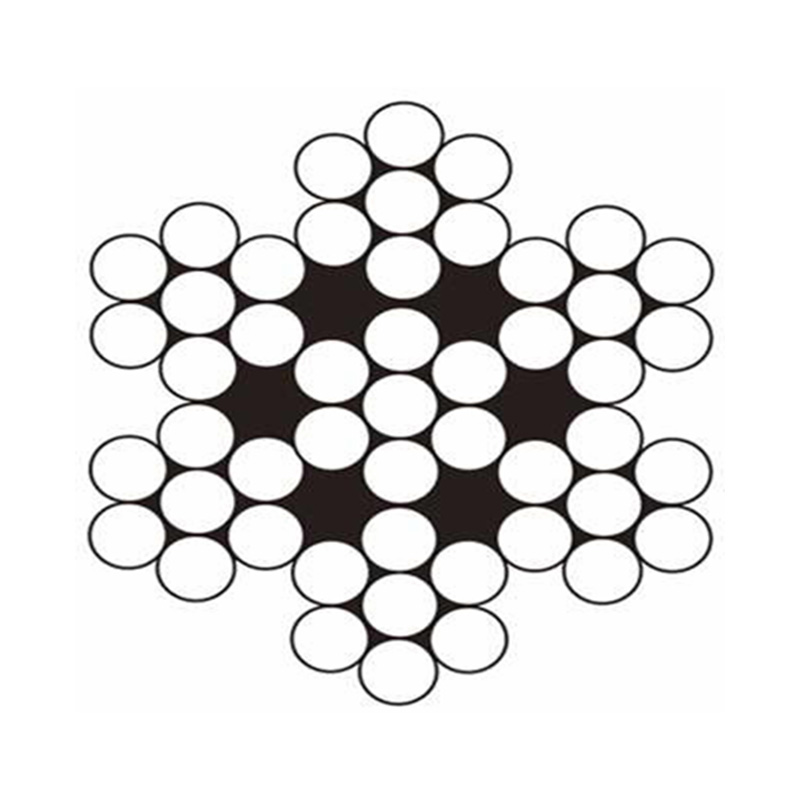

| 7 x 7 | |||||
| 3/64 | 0.008 | 1.91 | 4.2 | 270 | 270 |
| 1/16 | 0.01 | 3.4 | 7.5 | 480 | 480 |
| 5/64 | 0.01 | 4.8 | 10.6 | 650 | 650 |
| 3/32 | 0.012 | 7.26 | 16 | 920 | 920 |
| 1/8 | 0.014 | 12.93 | 28.5 | 1.700 | 1.700 |
| 5/32 | 0.016 | 19.5 | 43 | 2.600 | 2.400 |
| 3/16 | 0.018 | 28.1 | 62 | 3.700 | 3.700 |
| 1/4 | 0.018 | 48.3 | 106 | 6,100 | 6,100 |
| 5/16 | 0.022 | 75.8 | 167 | 9,200 | 9,000 |
| 3/8 | 0.026 | 109 | 240 | 13,100 | 12,600 |

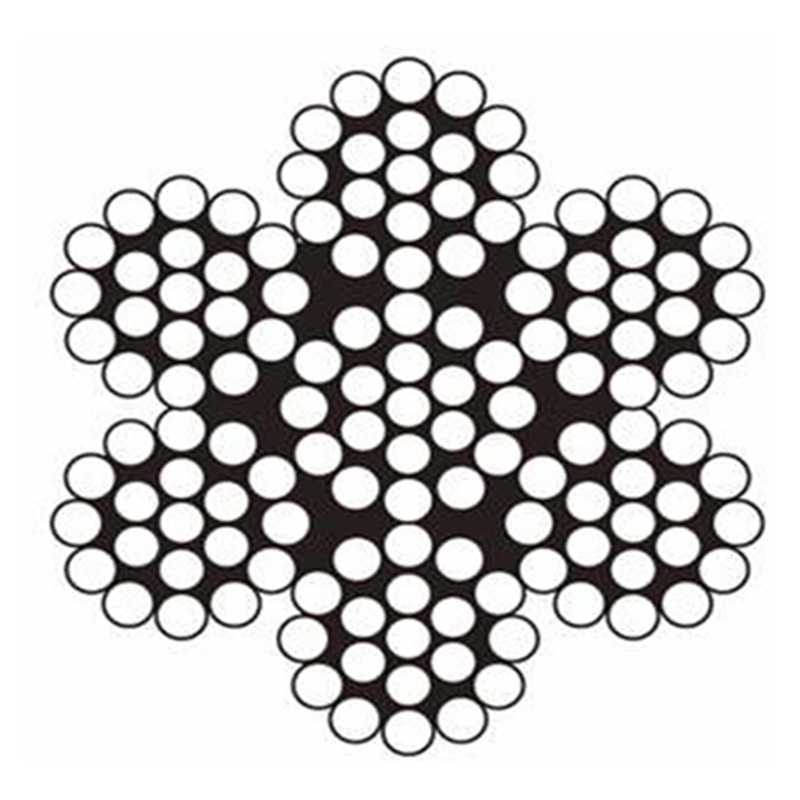

| 7 x 19 | |||||
| 1/16 | 0.01 | 3.4 | 7.5 | 480 | 480 |
| 3/32 | 0.012 | 7.89 | 17.4 | 1,000 | 920 |
| 1/8 | 0.014 | 13.15 | 29 | 2,000 | 1.760 |
| 5/32 | 0.016 | 20.4 | 45 | 2.800 | 2.400 |
| 3/16 | 0.018 | 29.48 | 65 | 4.200 | 3.700 |
| 7/32 | 0.018 | 39 | 86 | 5.600 | 5,000 |
| 1/4 | 0.018 | 49.9 | 110 | 7,000 | 6.400 |
| 9/32 | 0.02 | 63 | 139 | 8,000 | 7,800 |
| 5/16 | 0.022 | 78.5 | 173 | 9.800 | 9,000 |
| 3/8 | 0.026 | 110.2 | 243 | 14,400 | 12,000 |

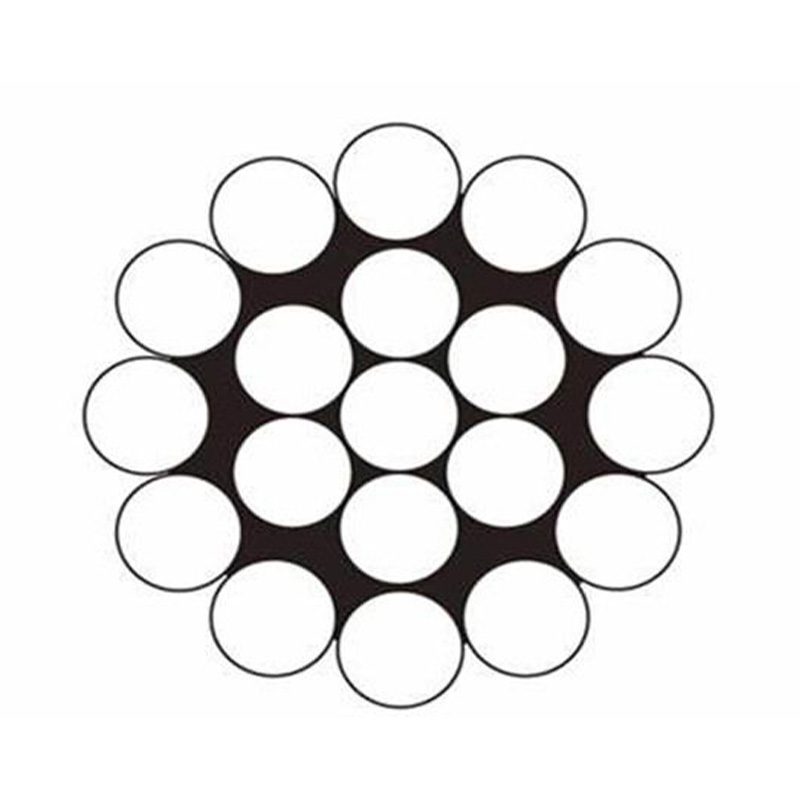

| 1 x 19 | |||||
| 3/64 | 0.008 | 2.14 | 4.7 | 375 | 280 |
| 1/16 | 0.01 | 3.81 | 8.4 | 500 | 500 |
| 5/64 | 0.01 | 6.04 | 13.3 | 800 | 800 |
| 3/32 | 0.012 | 8.55 | 18.9 | 1.200 | 1.200 |
| 1/8 | 0.014 | 15.26 | 33.6 | 2,100 | 2,100 |
| 5/32 | 0.016 | 23.8 | 52.5 | 3,300 | 3,300 |
| 3/16 | 0.018 | 34.2 | 75.4 | 4.700 | 4.700 |
| 1/4 | 0.018 | 60.8 | 134 | 8,200 | 8,200 |
| 5/16 | 0.022 | 95.1 | 210 | 12,500 | 12,500 |
| 3/8 | 0.026 | 137 | 302 | 18,000 | 17,500 |
