| ASTM973 | |||||||||||||

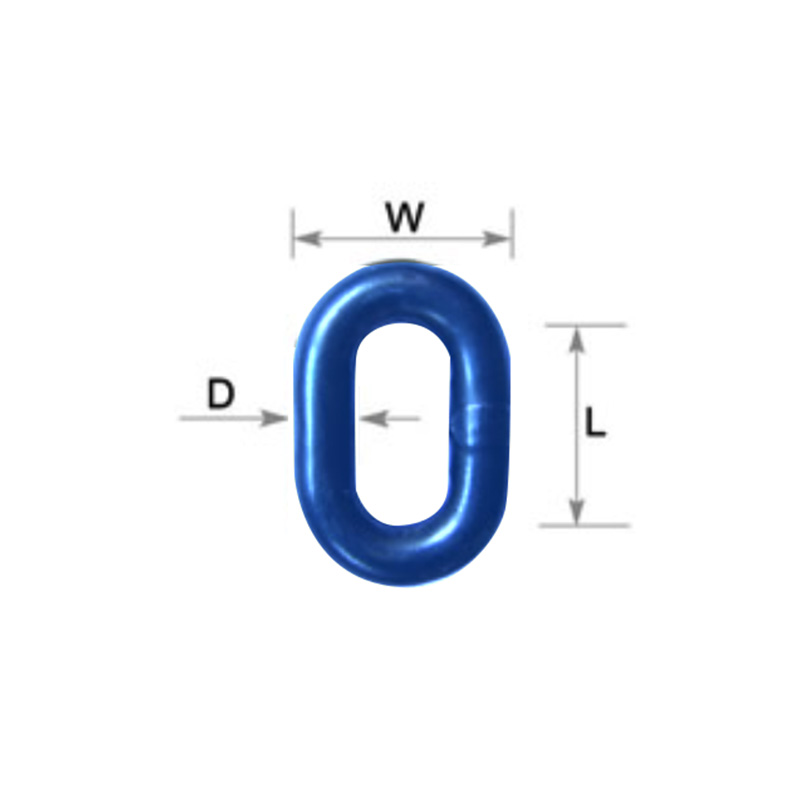

| Tamaño | Diámetro de material | Carga de trabajo Límite (máx.) | Prueba de prueba (Min.) | Fuerza de ruptura mínima | Longitud interior (máx.) | Rango de ancho interior | |||||||
| EN | Mm | EN | Mm | Lbs | Kg | Lbs | Kn | Lbs | Kn | EN | Mm | EN | Mm |
| 7/32 | 5.5 | 0.217 | 5.5 | 2.700 | 1.220 | 5.400 | 23.8 | 10,800 | 47.6 | 0.69 | 17.6 | 0.281-0.325 | 7.14-8.25 |
| 9/32 | 7.0 | 0.276 | 7.0 | 4,300 | 1.950 | 8,600 | 38.5 | 17,200 | 77.0 | 0.90 | 22.9 | 0.375-0.430 | 9.53-10.92 |
| 5/16 | 8.0 | 0.315 | 8.0 | 5.700 | 2.600 | 11,400 | 51.0 | 22,800 | 102.0 | 1.04 | 26.4 | 0.430-0.500 | 10.92-12.70 |
| 3/8 | 10.0 | 0.394 | 10.0 | 8.800 | 4.000 | 17,600 | 79.0 | 35,200 | 158.0 | 1.26 | 32.0 | 0.512-0.600 | 13.00-15.20 |
| 1/2 | 13.0 | 0.512 | 13.0 | 15,000 | 6.800 | 30,000 | 134.0 | 60,000 | 268.0 | 1.64 | 41.6 | 0.688-0.768 | 17.48-19.50 |
| 5/8 | 16.0 | 0.630 | 16.0 | 22.600 | 10,300 | 45,200 | 201.0 | 90,400 | 402.0 | 2.02 | 51.2 | 0.812-0.945 | 20.63-24.00 |
| 3/4 | 20.0 | 0.787 | 20.0 | 35,300 | 16,000 | 70,600 | 315.0 | 141,200 | 630.0 | 2.52 | 64.0 | 0.984-1.180 | 25.0-30.0 |
| 7/8 | 22.0 | 0.866 | 22.0 | 42.700 | 19,400 | 85.400 | 381.0 | 170,800 | 762.0 | 2.77 | 70.4 | 1.080-1.300 | 27.5-33.0 |
| NACM2003 | |||||||||||||
| Tamaño | Diámetro de material | Carga de trabajo Límite (máx.) | Prueba de prueba (Min.) | Fuerza de ruptura mínima | Longitud interior (máx.) | Rango de ancho interior | |||||||
| EN | Mm | EN | Mm | Lbs | Kg | Lbs | Kn | Lbs | Kn | EN | Mm | EN | Mm |
| 7/32 | 5.5 | 0.217 | 5.5 | 2,700 | 1.220 | 5,400 | 23.8 | 10,800 | 47.6 | 0.69 | 17.6 | 0.281 - 0.325 | 7.14 - 8.25 |
| 9/32 | 7.0 | 0.276 | 7.0 | 4,300 | 1.950 | 8,600 | 38.5 | 17,200 | 77.0 | 0.90 | 22.9 | 0.375 - 0.430 | 9.53 - 10.92 |
| 5/16 | 8.0 | 0.315 | 8.0 | 5.700 | 2,600 | 11,400 | 51.0 | 22,800 | 102.0 | 1.04 | 26.4 | 0.430 - 0.500 | 10.92 - 12.70 |
| 3/8 | 10.0 | 0.394 | 10.0 | 8.800 | 4.000 | 17,600 | 79.0 | 35,200 | 158.0 | 1.26 | 32.0 | 0.512 - 0.600 | 13.00 - 15.20 |
| 1/2 | 13.0 | 0.512 | 13.0 | 15,000 | 6.800 | 30,000 | 134.0 | 60,000 | 268.0 | 1.64 | 41.6 | 0.688 - 0.768 | 17.48 - 19.50 |
| 5/8 | 16.0 | 0.630 | 16.0 | 22,600 | 10,300 | 45,200 | 201.0 | 90,400 | 402.0 | 2.02 | 51.2 | 0.812 - 0.945 | 20.63 - 24.00 |
| 3/4 | 20.0 | 0.787 | 20.0 | 35,300 | 16,000 | 70,600 | 315.0 | 141,200 | 630.0 | 2.52 | 64.0 | 0.984 - 1.180 | 25.00 - 30.00 |
| 7/8 | 22.0 | 0.866 | 22.0 | 42,700 | 19,400 | 85,400 | 381.0 | 170,800 | 762.0 | 2.77 | 70.4 | 1.080 - 1.300 | 27.50 - 33.00 |
| 1 | 26.0 | 1.020 | 26.0 | 59,700 | 27,100 | 119,400 | 531.0 | 238,800 | 1.062.0 | 3.28 | 83.2 | 1.280 - 1.540 | 32.50 - 39.00 |
| 1-1/4 | 32.0 | 1.260 | 32.0 | 90,400 | 41,000 | 180,800 | 805.0 | 361,600 | 1.610.0 | 4.03 | 102.4 | 1.580 - 1.890 | 40.00 - 48.00 |
