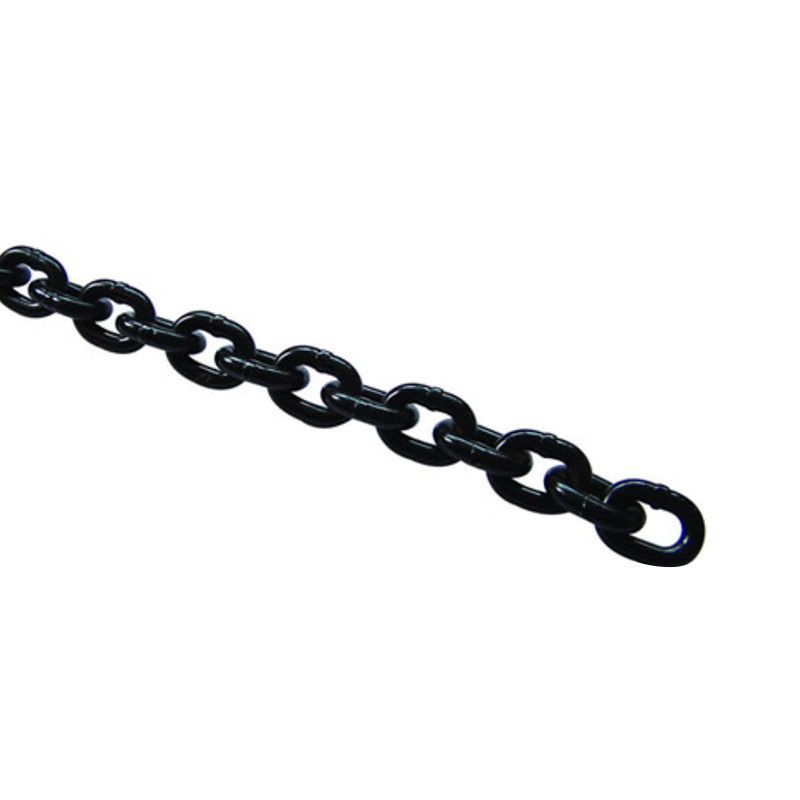

| ASTM80 | |||||||||||||

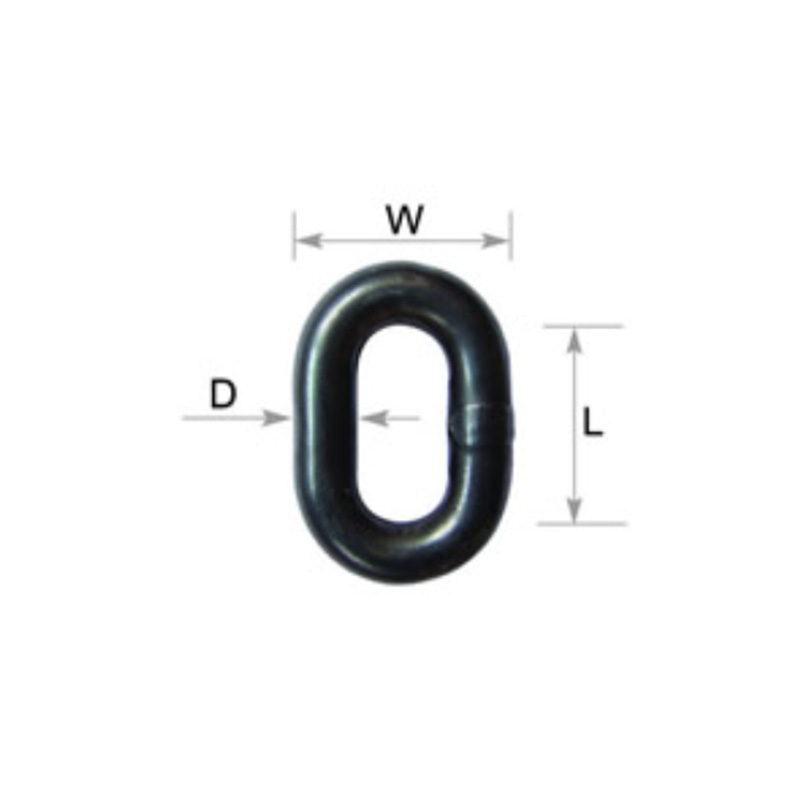

| Tamaño | DiámeTro de material | Carga de trabajo Límite (máx.) | Prueba de prueba (Min.) | Fuerza de ruptura mínima | Longitud interior (máx.) | Rango de ancho interior | |||||||
| EN | Mm | EN | Mm | Lbs | Kg | Lbs | Kn | Lbs | Kn | EN | Mm | EN | Mm |
| 7/32 | 5.5 | 0.217 | 5.5 | 2,100 | 970 | 4.200 | 19.0 | 8,400 | 38.0 | 0.69 | 17.6 | 0.281 - 0.325 | 7.14 - 8.25 |
| 9/32 | 7.0 | 0.276 | 7.0 | 3,500 | 1.570 | 7,000 | 30.8 | 14,000 | 61.6 | 0.90 | 22.9 | 0.375 - 0.430 | 9.53 - 10.92 |
| 5/16 | 8.0 | 0.315 | 8.0 | 4.500 | 2,000 | 9,000 | 40.3 | 18,000 | 80.6 | 1.04 | 26.4 | 0.430 - 0.500 | 10.92 - 12.70 |
| 3/8 | 10.0 | 0.394 | 10.0 | 7,100 | 3,200 | 14.200 | 63.0 | 28,400 | 126.0 | 1.26 | 32.0 | 0.512 - 0.600 | 13.00 - 15.20 |
| 1/2 | 13.0 | 0.512 | 13.0 | 12,000 | 5.400 | 24,000 | 107.0 | 48,000 | 214.0 | 1.64 | 41.6 | 0.688 - 0.768 | 17.43 - 19.50 |
| 5/8 | 16.0 | 0.630 | 16.0 | 18,100 | 8,200 | 36,200 | 161.0 | 72,400 | 322.0 | 2.02 | 51.2 | 0.812 - 0.945 | 20.63 - 24.00 |
| 3/4 | 20.0 | 0.787 | 20.0 | 28,300 | 12,800 | 56,600 | 252.0 | 113,200 | 504.0 | 2.52 | 64.0 | 0.984 - 1.180 | 25.00 - 30.00 |
| 7/8 | 22.0 | 0.866 | 22.0 | 34,200 | 15,500 | 68,400 | 305.0 | 136,800 | 608.0 | 2.77 | 70.4 | 1.080 - 1.300 | 27.50 - 33.00 |
| 1 | 26.0 | 1.024 | 26.0 | 47,700 | 21,600 | 95.400 | 425.0 | 190,800 | 850.0 | 3.28 | 83.2 | 1.280 - 1.540 | 32.50 - 39.00 |
| 1-1/4 | 32.0 | 1.260 | 32.0 | 72,300 | 32,800 | 144,600 | 644.0 | 289,200 | 1,288.0 | 4.03 | 102.4 | 1.580 - 1.890 | 40.00 - 48.00 |
| NACM2003 | |||||||||||||
| Tamaño | Diámetro de material | Carga de trabajo Límite (máx.) | Prueba de prueba (Min.) | Fuerza de ruptura mínima | Longitud interior (máx.) | Rango de ancho interior | |||||||
| EN | Mm | EN | Mm | Lbs | Kg | Lbs | Kn | Lbs | Kn | EN | Mm | EN | Mm |
| 7/32 | 5.5 | 0.217 | 5.5 | 2,100 | 970 | 4,200 | 19.0 | 8,400 | 38.0 | 0.69 | 17.6 | 0.281 - 0.325 | 7.14 - 8.25 |
| 9/32 | 7.0 | 0.276 | 7.0 | 3,500 | 1.570 | 7,000 | 30.8 | 14,000 | 61.6 | 0.90 | 22.9 | 0.375 - 0.430 | 9.53 - 10.92 |
| 5/16 | 8.0 | 0.315 | 8.0 | 4.500 | 2,000 | 9,000 | 40.3 | 18,000 | 80.6 | 1.04 | 26.4 | 0.430 - 0.500 | 10.92 - 12.70 |
| 3/8 | 10.0 | 0.394 | 10.0 | 7,100 | 3,200 | 14,200 | 63.0 | 28,400 | 126.0 | 1.26 | 32.0 | 0.512 - 0.600 | 13.00 - 15.20 |
| 1/2 | 13.0 | 0.512 | 13.0 | 12,000 | 5,400 | 24,000 | 107.0 | 48,000 | 214.0 | 1.64 | 41.6 | 0.688 - 0.768 | 17.48 - 19.50 |
| 5/8 | 16.0 | 0.630 | 16.0 | 18,100 | 8,200 | 36,200 | 161.0 | 72,400 | 322.0 | 2.02 | 51.2 | 0.812 - 0.945 | 20.63 - 24.00 |
| 3/4 | 20.0 | 0.787 | 20.0 | 28,300 | 12,800 | 56,600 | 252.0 | 113,200 | 504.0 | 2.52 | 64.0 | 0.984 - 1.180 | 25.00 - 30.00 |
| 7/8 | 22.0 | 0.866 | 22.0 | 34,200 | 15,500 | 68,400 | 305.0 | 136,800 | 610.0 | 2.77 | 70.4 | 1.080 - 1.300 | 27.50 - 33.00 |
| 1 | 26.0 | 1.020 | 26.0 | 47,700 | 21,600 | 95,400 | 425.0 | 190,800 | 850.0 | 3.28 | 83.2 | 1.280 - 1.540 | 32.50 - 39.00 |
| 1-1/4 | 32.0 | 1.260 | 32.0 | 72,300 | 32,800 | 144,600 | 644.0 | 289,200 | 1,288.0 | 4.03 | 102.4 | 1.580 - 1.890 | 40.00 - 48.00 |
| EN818-2 Cadena de enlace corta de grado 8 para hondas de cadena | ||||||||
| Tamaño nominal | Paso | Ancho externo | Ancho interno | Límite de carga de trabajo | Fuerza a prueba de fabricación | Mínimo Fuerza de ruptura | Mínimo Deflexión de curvatura | Peso |
| mm | mm | mm | mm | t | Kn | Kn | mm | kg/m |
| 4 | 12 | 13.2 | 5.2 | 0.5 | 12.6 | 20.1 | 3.2 | 0.349 |
| 5 | 15 | 16.5 | 6.5 | 0.8 | 19.6 | 31.4 | 4 | 0.545 |
| 6 | 18 | 21 | 9 | 1.1 | 28.3 | 45.2 | 4.8 | 0.802 |
| 7 | 21 | 24 | 10 | 1.5 | 38.5 | 61.6 | 5.6 | 1.083 |
| 8 | 24 | 27.5 | 11.5 | 2 | 50.3 | 80.4 | 6.4 | 1.416 |
| 10 | 30 | 34.5 | 14.5 | 3.2 | 78.5 | 126 | 8 | 2.216 |
| 13 | 39 | 45 | 19 | 5.3 | 133 | 212 | 10 | 3.749 |
| 16 | 48 | 55.5 | 23.5 | 8 | 201 | 322 | 13 | 5.571 |
| 18 | 54 | 61 | 25 | 10 | 254 | 407 | 14 | 7.154 |
| 19 | 57 | 64 | 26 | 11.2 | 284 | 454 | 15 | 7.773 |
| 20 | 60 | 68 | 28 | 12.5 | 314 | 503 | 16 | 8.641 |
| 22 | 66 | 73.5 | 29.5 | 15 | 380 | 608 | 18 | 10.391 |
| 26 | 78 | 89 | 37 | 21.2 | 531 | 849 | 21 | 14.64 |
| 32 | 96 | 112 | 48 | 31.5 | 804 | 1290 | 26 | 22.358 |
