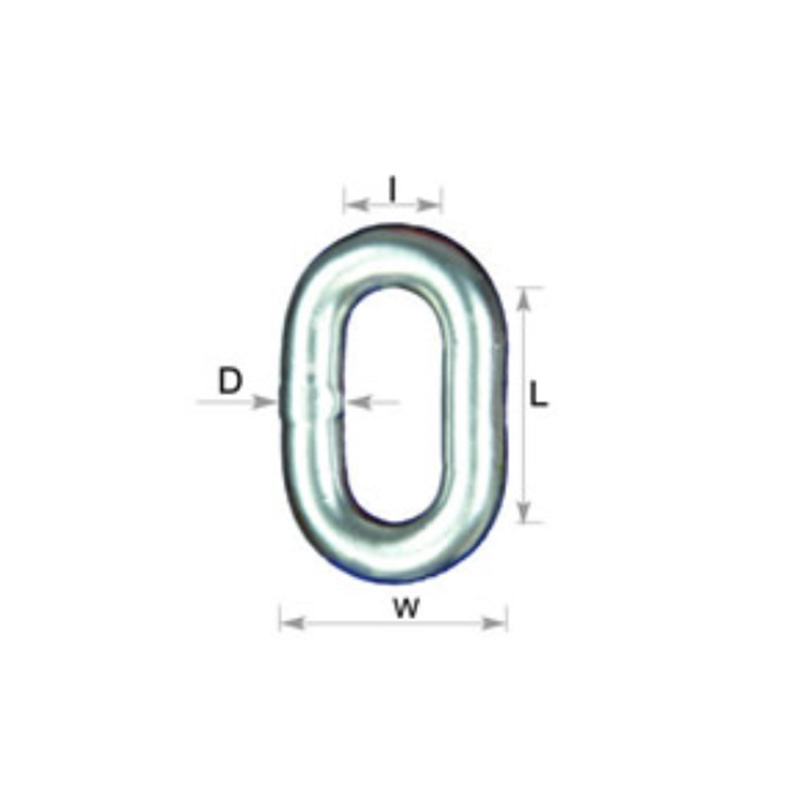

| Tamaño de cadena | yongitud interior | Ancho exterior | carga de trabajo | fuerza de prueba | Min. Fuerza de ruptura | |||
| re | toyoerancia | yo | toyoerancia | w. | toyoerancia | |||
| milímetros | ± milímetro | milímetros | ± milímetro | milímetros | ± milímetro | kilos | kN | kN |
| 2.0 | ± 0,10 | 22.0 | ± 1,0 | 8.0 | ± 0,4 | 25.0 | 0.5 | 1.3 |
| 2.5 | ± 0,12 | 24.0 | ± 1,1 | 10.0 | ± 0,5 | 40.0 | 0.8 | 2.0 |
| 3.0 | ± 0,15 | 26.0 | ± 1,2 | 12.0 | ± 0,6 | 55.0 | 1.1 | 3.2 |
| 3.5 | ± 0,20 | 28.0 | ± 1,3 | 14.0 | ± 0,7 | 80.0 | 1.5 | 3.9 |
| 4.0 | ± 0,20 | 32.0 | ± 1,5 | 16.0 | ± 0,8 | 100.0 | 2.5 | 6.5 |
| 4.5 | ± 0,23 | 34.0 | ± 1,7 | 18.0 | ± 0,9 | 128.0 | 3.0 | 8.0 |
| 5.0 | ± 0,25 | 35.0 | ± 1,8 | 20.0 | ± 1,0 | 160.0 | 4.0 | 10.0 |
| 5.5 | ± 0,25 | 38.5 | ± 1,8 | 22.0 | ± 1,1 | 195.0 | 4.2 | 10.5 |
| 6.0 | ± 0,30 | 42.0 | ± 2,0 | 24.0 | ± 1,2 | 200.0 | 5.0 | 12.0 |
| 7.0 | ± 0,35 | 49.0 | ± 2,5 | 28.0 | ± 1,4 | 300.0 | 7.5 | 19.0 |
| 8.0 | ± 0,40 | 52.0 | ± 2,5 | 32.0 | ± 1,6 | 400.0 | 10.0 | 25.0 |
| 8.5 | ± 0,40 | 56.0 | ± 2,8 | 34.0 | ± 1,7 | 460.0 | 10.2 | 25.5 |
| 9.0 | ± 0,50 | 59.0 | ± 3,0 | 36.0 | ± 1,8 | 530.0 | 10.5 | 32.0 |
| 10.0 | ± 0,50 | 65.0 | ± 3,2 | 40.0 | ± 2,0 | 630.0 | 16.0 | 40.0 |
| 11.0 | ± 0,50 | 72.0 | ± 3,4 | 44.0 | ± 2,0 | 790.0 | 15.8 | 47.5 |
| 12.0 | ± 0,60 | 78.0 | ± 3,6 | 48.0 | ± 2,3 | 940.0 | 18.8 | 56.5 |
| 13.0 | ± 0,65 | 82.0 | ± 4,0 | 52.0 | ± 2,5 | 1000.0 | 25.0 | 63.0 |
| 16.0 | ± 0,80 | 100.0 | ± 5,0 | 64.0 | ± 3,2 | 1600.0 | 40.0 | 100.0 |
| 18.0 | ± 0,90 | 113.0 | ± 5,2 | 70.0 | ± 3,2 | 2120.0 | 42.3 | 127.0 |
| 19.0 | ± 0,90 | 119.0 | ± 5,6 | 72.0 | ± 3,4 | 2370.0 | 47.3 | 142.0 |
| 20.0 | ± 1,00 | 120.0 | ± 6,0 | 75.0 | ± 3,8 | 2500.0 | 50.0 | 160.0 |
| 22.0 | ± 1,20 | 127.0 | ± 6,0 | 82.0 | ± 4,0 | 3170.0 | 63.3 | 190.0 |
| 25.0 | ± 1,30 | 140.0 | ± 6,6 | 85.0 | ± 4,2 | 4090.0 | 81.7 | 245.0 |
| 28.0 | ± 1,40 | 152.0 | ± 7,0 | 96.0 | ± 4,7 | 6000.0 | 120.0 | 300.0 |
| 32.0 | ± 1,60 | 171.0 | ± 7,8 | 108.0 | ± 5,2 | 8000.0 | 160.0 | 400.0 |
