| ASTM80 | |||||||||||||

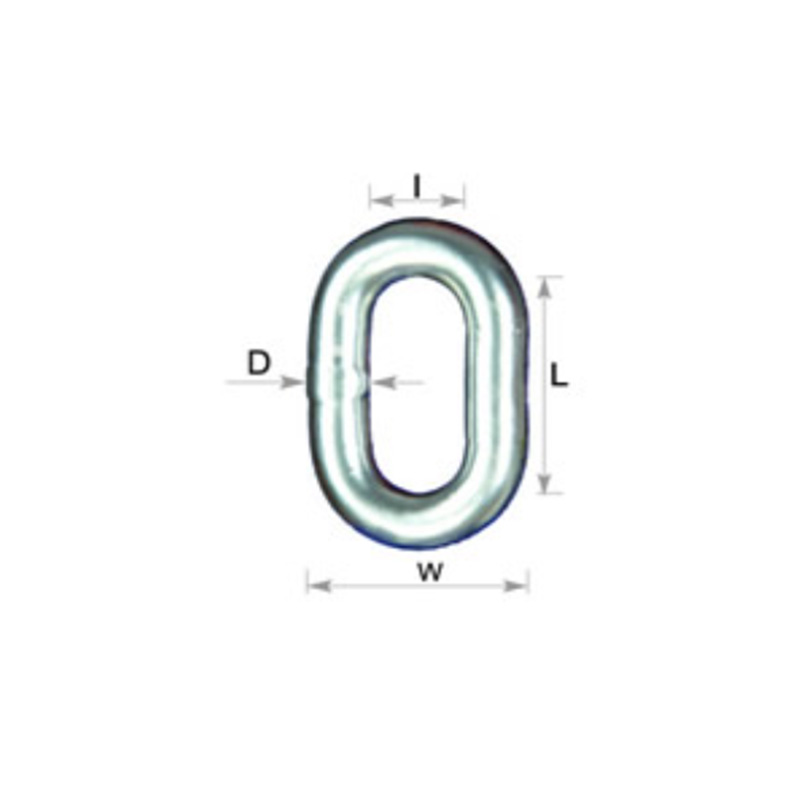

| Tamaño | Diámetro del material | carga de trabajo Límite (máx.) | prueba de prueba (Mín.) | Fuerza de rotura mínima | Longitud interior (máx.) | Ancho interior (mín.) | |||||||
| ES | MM | ES | MM | libras | kilos | libras | kn | libras | kn | ES | MM | ES | MM |
| 4.0 | 0.156 | 4.0 | 400 | 180 | 800 | 3.6 | 1.600 | 7.2 | 0.94 | 23.9 | 0.25 | 6.4 | |
| 5.5 | 0.217 | 5.5 | 800 | 365 | 1.600 | 7.2 | 3.200 | 14.4 | 0.98 | 24.8 | 0.30 | 7.7 | |
| 7.0 | 0.276 | 7.0 | 1.300 | 580 | 2.600 | 11.6 | 5.200 | 23.2 | 1.24 | 31.5 | 0.38 | 9.8 | |
| 8.0 | 0.331 | 8.4 | 1.900 | 860 | 3.800 | 16.9 | 7.600 | 33.8 | 1.29 | 32.8 | 0.44 | 11.2 | |
| 10.0 | 0.394 | 10.0 | 2.650 | 1.200 | 5.300 | 23.6 | 10.600 | 47.2 | 1.38 | 35.0 | 0.55 | 14.0 | |
| 11.9 | 0.468 | 11.9 | 3.700 | 1.680 | 7.400 | 32.9 | 14.800 | 65.8 | 1.64 | 41.6 | 0.65 | 16.6 | |
| 13.0 | 0.512 | 13.0 | 4.500 | 2.030 | 9.000 | 40.0 | 18.000 | 80.0 | 1.79 | 45.5 | 0.72 | 18.2 | |
| 16.0 | 0.630 | 16.0 | 6.900 | 3.130 | 13.800 | 61.3 | 27.600 | 122.6 | 2.20 | 56.0 | 0.79 | 20.0 | |
| 20.0 | 0.787 | 20.0 | 10.500 | 4.800 | 21.200 | 94.3 | 42.400 | 188.6 | 2.76 | 70.0 | 0.98 | 25.0 | |
| 22.0 | 0.866 | 22.0 | 12.800 | 5.810 | 25.600 | 114.1 | 51.200 | 228.2 | 3.03 | 77.0 | 1.08 | 27.5 | |
| 1 | 26.0 | 1.020 | 26.0 | 17.900 | 8.140 | 35.800 | 159.1 | 71.600 | 318.2 | 3.58 | 90.9 | 1.25 | 31.7 |
| NACM2003 | |||||||||||||
| Tamaño | Diámetro del material | carga de trabajo Límite (máx.) | prueba de prueba (Mín.) | Fuerza de rotura mínima | Longitud interior (máx.) | Ancho interior (mín.) | |||||||
| ES | MM | ES | MM | libras | kilos | libras | kn | libras | kn | ES | MM | ES | MM |
| 1/8 | 4.0 | 0.156 | 4.0 | 400 | 180 | 800 | 3.6 | 1.600 | 7.2 | 0.94 | 23.9 | 0.25 | 6.4 |
| 3/16 | 5.5 | 0.217 | 5.5 | 800 | 365 | 1.600 | 7.2 | 3.200 | 14.4 | 0.98 | 24.8 | 0.30 | 7.7 |
| 1/4 | 7.0 | 0.276 | 7.0 | 1.300 | 580 | 2.600 | 11.6 | 5.200 | 23.2 | 1.24 | 31.5 | 0.38 | 9.8 |
| 5/16 | 8.0 | 0.331 | 8.4 | 1.900 | 860 | 3.800 | 16.9 | 7.600 | 33.8 | 1.29 | 32.8 | 0.44 | 11.2 |
| 3/8 | 10.0 | 0.394 | 10.0 | 2.650 | 1.200 | 5.300 | 23.6 | 10.600 | 47.2 | 1.38 | 35.0 | 0.55 | 14.0 |
| 7/16 | 11.9 | 0.468 | 11.9 | 3.700 | 1.680 | 7.400 | 32.9 | 14.800 | 65.8 | 1.64 | 41.6 | 0.65 | 16.6 |
| 1/2 | 13.0 | 0.512 | 13.0 | 4.500 | 2.030 | 9.000 | 40.0 | 18.000 | 80.0 | 1.79 | 45.5 | 0.72 | 18.2 |
| 5/8 | 16.0 | 0.630 | 16.0 | 6.900 | 3.130 | 13.800 | 61.3 | 27.600 | 122.6 | 2.20 | 56.0 | 0.79 | 20.0 |
| 3/4 | 20.0 | 0.787 | 20.0 | 10.500 | 4.800 | 21.200 | 94.3 | 42.400 | 188.6 | 2.76 | 70.0 | 0.98 | 25.0 |
| 7/8 | 22.0 | 0.866 | 22.0 | 12.800 | 5.810 | 25.600 | 114.1 | 51.200 | 228.2 | 3.03 | 77.0 | 1.08 | 27.5 |
| 1 | 26.0 | 1.020 | 26.0 | 17.900 | 8.140 | 35.800 | 159.1 | 71.600 | 318.2 | 3.58 | 90.9 | 1.25 | 31.7 |
Derechos de autor © Shanghai TCH Metals & Machinery Co., Ltd. Reservados todos los derechos.

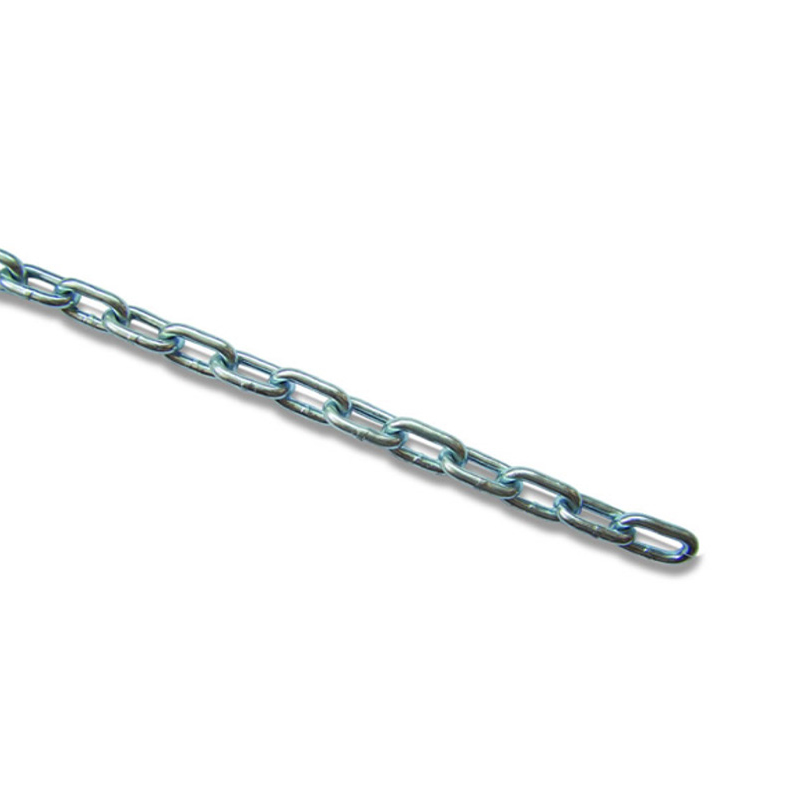

Al por mayor Cadena de bobina a prueba de G30 Proveedores
