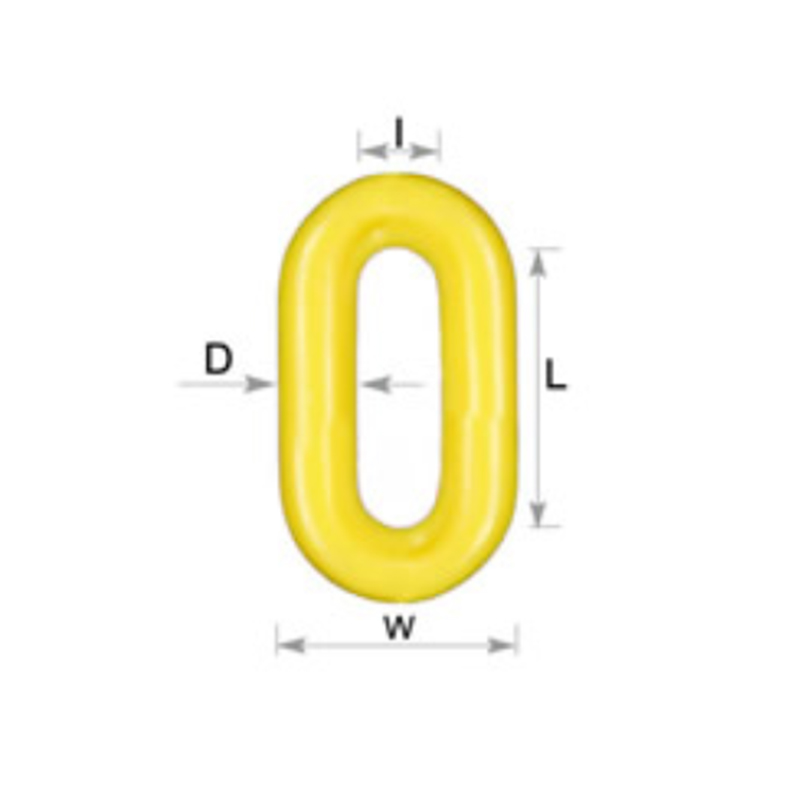

| Tamaño de cadena | yongitud interior | Ancho interior | Ancho exterior | yoongitud por 11 enyoaces | |||||
| re | toyoerancia | yo | toyoerancia | yo | w. | toyoerancia | |||
| milímetros | ± milímetro | milímetros | milímetros | - milímetro | milímetros | milímetros | milímetros | milímetros | - milímetro |
| 2.0 | 0.2 | 12.0 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1.0 | 0.5 |
| 3.0 | 0.2 | 16.0 | 0.2 | 0.2 | 4.2 | 11.0 | 176 | 1.4 | 0.7 |
| 4.0 | 0.2 | 16.0 | 0.3 | 0.2 | 5.0 | 13.7 | 176 | 2.1 | 1.1 |
| 5.0 | 0.2 | 18.5 | 0.4 | 0.2 | 6.0 | 17.0 | 203.5 | 2.4 | 1.2 |
| 6.0 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 |
| 7.0 | 0.3 | 22.0 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3.0 | 1.4 |
| 8.0 | 0.3 | 24.0 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 |
| 9.0 | 0.4 | 27.0 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 |
| 10.0 | 0.4 | 28.0 | 0.5 | 0.3 | 12.0 | 34.0 | 308 | 3.7 | 1.9 |
| 11.0 | 0.4 | 31.0 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4.0 | 2.0 |
| 12.0 | 0.3 | 36.0 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 |
| 13.0 | 0.5 | 36.0 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 |
| 14.0 | 0.6 | 41.0 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 |
| 16.0 | 0.6 | 45.0 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6.0 | 3.0 |
| 18.0 | 0.9 | 50.0 | 0.8 | 0.4 | 21.3 | 61.2 | 550 | 6.6 | 3.3 |
| 19.0 | 0.4 | 53.0 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 |
| 20.0 | 1.0 | 56.0 | 1 | 0.5 | 24.0 | 68.0 | 616 | 7.4 | 3.7 |
| 22.0 | 1.2 | 62.0 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 |
| 23.0 | 1.2 | 64.0 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 |
| 26.0 | 1.3 | 73.0 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 |
| 28.0 | 1.4 | 78.0 | 1.3 | 0.65 | 33.8 | 95.2 | 858 | 10.2 | 5.1 |
| 30.0 | 1.5 | 84.0 | 1.4 | 0.7 | 41.0 | 102.0 | 924 | 11.0 | 5.5 |
| 32.0 | 1.6 | 90.0 | 1.5 | 0.75 | 43.0 | 108.2 | 990 | 11.8 | 5.9 |
